Accident Reconstruction Animation: Evidence-Driven Visuals for High-Stakes Litigation

Key Takeaways

• Accident reconstruction animation combines forensic investigation and 3D visualization to translate complex data into clear visual narratives for judges, juries, and mediators.
• MediVisuals + High Impact builds every animation from measurable inputs: scene surveys, black box data, driver visibility studies, vehicle damage profiles, and physical evidence.
• Courts treat these animations as demonstrative evidence tied to a reconstructionist's testimony, meaning each element must trace back to documented facts, not imagination.
• Modern forensic animation integrates LiDAR, photogrammetry, EDR telemetry, and nighttime visibility research while remaining constrained by physics and the record.
• This article covers the data sources, workflow, admissibility standards, specialized visibility workups, cost drivers, and how to engage MediVisuals + High Impact for your case.

What Is Accident Reconstruction Animation?

Accident reconstruction animation is a scientifically accurate 3D visualization depicting the sequence of events in a collision, built on a reconstructionist's analysis rather than creative speculation. The analytical science of accident reconstruction determines what happened; the legal animation communicates those findings visually so a jury can follow timing, speed, and causation. These animations help juries visualize the flow of events in trials, and they simplify complex legal arguments that would otherwise rely on technical reports alone.

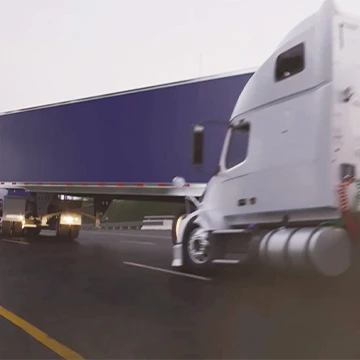

Common case types include passenger vehicle collisions, commercial trucking crashes, motorcycle impacts, pedestrian and cyclist strikes, forklift accidents, warehouse incidents, and train or railroad events. Accident reconstruction animations are used in various accident types precisely because they assist courtroom presentation by making technical evidence understandable. Most courts classify them as demonstrative evidence, meaning they illustrate an opinion rather than constitute independent proof.

At MediVisuals + High Impact, every vehicle movement and camera angle is traceable to the record: measurements, reports, and reconstruction calculations. Legal animations must visually represent conclusions supported by physical evidence and calculations, not cinematic re-enactments.

Evidence First: How Data Drives Accident Reconstruction Animations

An accident reconstruction animation must originate in evidence, not imagination. The process starts with gathering and organizing all available data before a single frame is animated. Accident reconstruction animations require accurate case materials, and creating animations requires accurate data from police reports and scene photos.

Key data sources include:

• Scene data: police collision reports, scale diagrams, total station or LiDAR surveys, drone orthophotos, roadway gouges, and tire marks
• Vehicle data: crush profiles, manufacturer specifications, and 3D laser scans of vehicle damage
• Electronic records: black box data (EDR) capturing pre-impact speed, braking, throttle, steering input, ABS events, airbag deployment times, and GPS logs
• Video and photography: dashcam footage, surveillance video, smartphone recordings, and calibrated scene photographs

Evidence gathering includes measuring skid marks, vehicle positions, and extracting vehicle data. Mathematical and physical analysis helps determine vehicle speeds and trajectories from these inputs. Forensic experts collect evidence including police reports and vehicle damage assessments, which together form the spine of the animation's timing.

Witness testimony and party statements are used cautiously. These animations can validate or invalidate witness testimonies against physical data, so statements are cross-checked against calculated kinematics and measured evidence before they inform any animated scenario.

MediVisuals + High Impact collaborates with retained accident reconstructionists, biomechanical professionals, and other technical consultants so the animation reflects their documented opinions.

From Scene Survey to Screen: The Accident Reconstruction Animation Workflow

The creation process includes data collection, physics analysis, and 3D rendering, typically moving through these stages:

1. Intake and scoping: Review pleadings, identify disputed liability questions (speed, line of sight, signal phase), and determine whether the target is mediation or full trial use.
2. Evidence organization: Secure file transfer, time-align videos and EDR data, build a unified event timeline.
3. Geometry modeling: Import survey points, LiDAR point clouds, or photogrammetry into 3D software. Technicians utilize CAD and animation software (tools such as 3D Studio Max) to build accurate 3D models of vehicles and accident scenes. 3D modeling creates scaled digital replicas of environments and vehicles; modern 3D tools create realistic roads and vehicle paths at centimeter-level accuracy.
4. Motion and kinematics: Apply reconstruction results, including pre-impact speeds, deceleration rates, and steering inputs, constraining motion to match EDR data, video pixel tracking, and crush energy calculations.
5. Lighting and weather: Configure sun position, headlamp photometrics, roadway lighting, and weather effects. Nighttime visibility and rain, fog, or snow conditions are modeled when relevant.
6. Review and revision: Internal quality checks followed by structured review sessions with the reconstructionist and legal team. Computer simulations can show accidents from multiple perspectives, so camera angles are refined to match driver eye height, mirror views, and overhead positions.
7. Final delivery: High-resolution video, still frames for trial boards, and multiple labeled versions if needed (plaintiff theory vs. defense theory).

Accuracy, Admissibility, and the Role of Forensic Animation in Court

Accurate animations improve court admissibility of evidence, but only when they reflect scientific processes for reliability. In Commonwealth v. Serge (2006), the Pennsylvania Supreme Court upheld a computer animation when the software was accepted in the field, the animation fairly reflected the reconstructionist's opinion, and the underlying data was reliable. Accident reconstruction animations are admissible in court if scientifically accurate and properly authenticated.

A visually convincing animation can still be inaccurate if not tied to the evidence. Animations must align with physical evidence for credibility, and overly cinematic flourishes or unsupported visual details risk exclusion under Rule 403 prejudice objections. Accurate animations help visualize accident dynamics effectively only when each animated element traces to a specific survey, EDR channel, video frame, or sworn testimony.

Animations can be positioned as demonstrative evidence during opening statements, critical liability witnesses, or closing arguments. They also serve as mediation tools and side-by-side comparators of competing theories. Attorneys should coordinate with their reconstructionist, review admissibility standards in their jurisdiction, and prepare disclosures with the animation and data packages ready. The Federal Judicial Center and NHTSA offer additional resources on scientific evidence and crash investigation practices.

Driver Visibility, Nighttime Conditions, and Special Visibility Studies

Many cases turn on what a driver or pedestrian could see and when, not just raw speed. Animations help illustrate points of impact, reaction times, and driver visibility under conditions like nighttime visibility, dawn, dusk, fog, or glare.

MediVisuals + High Impact works with photometric data, headlamp distribution files, and roadway lighting plans to calibrate how bright objects appear relative to the environment. Research such as Olson and Sivak's UMTRI 1983 study measured detection thresholds for dark-clad pedestrians under low-beam headlamps, establishing that visibility distance depends on measurable luminance levels rather than guesswork.

Driver perspective visualization includes first-person camera views from each driver's eye height, mirror views, and crosswalk perspectives showing when a pedestrian first becomes visible. Animations can compare scenarios side by side: low beams versus high beams, or a roadway with burned-out streetlights versus fully functioning ones. These visuals support opinions on perception-response time, stopping distances, and reasonable driver behavior under the specific lighting and weather conditions at the time the accident occurred.

Working With MediVisuals + High Impact: Scope, Cost Drivers, and Collaboration

MediVisuals + High Impact serves law firms across the country, providing accident reconstruction animation services that range from focused mediation clips to comprehensive trial exhibits. Accident animations clarify liability in complex multi-vehicle collisions and insurance claims, and animations can demonstrate the impact of collisions on vehicle occupants alongside occupant kinematics when paired with biomechanical sequences.

Animations are used during settlement negotiations to provide visual proof and at trial to simplify court processes by visualizing accident sequences. Accident reconstruction animation aids in understanding complex accident scenarios regardless of whether two vehicles or a dozen are involved.

Primary cost drivers:

• Number of vehicles and people involved
• Complexity of roadway geometry and environmental detail
• Volume and type of input data (large LiDAR datasets vs. simple diagrams)
• Number of alternate scenarios
• Required turnaround time

Early engagement saves cost; it allows the team to advise on additional data collection, such as targeted scene photography or on-site light measurements, before conditions change. To get started, assemble your police report, scene photos, diagrams, video, EDR reports, and any existing reconstruction analysis, then contact MediVisuals + High Impact to discuss objectives, timelines, and budget ranges.

FAQ

How accurate are accident reconstruction animations compared to traditional reports?

An accident reconstruction animation is only as accurate as the underlying reconstruction analysis and data. It visualizes those findings rather than replacing them. Traditional written reports and calculations remain essential; the animation is a visual form of communicating those same conclusions to judges, juries, and mediators. Every element, from road geometry to vehicle motion, ties back to measurable sources or documented opinions.

Can you create an animation if there is no black box (EDR) data available?

Yes. Accident reconstruction animations can be built using skid marks, vehicle damage, scene measurements, dashcam or surveillance video, and established reconstruction methods for speed and timing estimation. When EDR data is missing, assumptions and ranges are identified so the animation remains transparent. Pixel tracking and photogrammetry can often recover useful motion and distance information from available video.

How long does it take to produce an accident reconstruction animation?

Simple, issue-focused animations often take two to three weeks from receipt of all data. Complex multi-vehicle, multi-scenario reconstructions with detailed environments can take four to eight weeks or longer. Schedule depends on how complete and organized the incoming materials are, how many review rounds are requested, and whether new data emerges during production. Contact MediVisuals + High Impact as early as possible, especially with a firm mediation or trial date.

What information should I provide to start a project?

The most helpful items include the police collision report, scale diagrams, all scene and vehicle photographs, drone or aerial imagery, available video footage, EDR or telematics downloads, roadway and lighting plans, and any existing reconstruction or engineering reports. A brief case summary highlighting the specific liability disputes (speed, driver visibility, signal timing, alleged distraction) helps the team target visuals to the right questions.

Can a single case have more than one accident reconstruction animation?

It is common to develop multiple animations or variants within the same matter: one for mediation, one focused on a specific reconstructionist's opinion, and another illustrating the opposing party's timeline for comparison. Courts appreciate clear labeling ("Plaintiff theory" vs. "Defense theory") so viewers understand which assumptions each version represents. Reusing core scene geometry across related animations is efficient, which is why planning alternative scenarios at the outset saves time and cost.
