Unlocking the Secrets of Vehicular Accident Reconstruction: How Experts Reveal What Really Happened

In legal proceedings, accident reconstruction experts—often with backgrounds in physics, engineering, forensics, and law enforcement—play a crucial role by providing scientific evidence, technical analysis, and expert witness testimony to clarify accident causes and liability. Forensic engineers, who are frequently licensed professional engineers, analyze, compile, and present collision reconstruction findings using mathematics, physics, forensic investigation techniques, and computer-aided design (CAD) software to create detailed reports, diagrams, and animations for court cases.

The goal is straightforward: answer who did what, when, and how it contributed to the outcome. Accident reconstruction is applied to a wide range of car accidents and vehicle collisions, with the process involving the identification of factors and other factors—such as negligence, vehicle maintenance, roadway conditions, and operator actions—that contribute to the outcome. This process is central to high-stakes civil litigation, criminal prosecutions involving vehicular manslaughter or DUI charges, insurance disputes, and safety investigations conducted by agencies like NHTSA in the U.S. and Transport Canada.

For attorneys handling complex accidents, the technical findings from a reconstruction are only as powerful as their presentation. The comprehensive analysis performed by accident reconstruction experts and forensic engineers supports legal claims by clarifying causation and liability. MediVisuals + High Impact partners with legal teams to transform reconstruction data into scientifically accurate visuals and forensic animations that clarify complex events, as well as trial graphics that make the collision sequence clear to judges, jurors, and adjusters.

Core Principles and Scope of Vehicular Accident Reconstruction

Traffic accident reconstruction blends multiple disciplines—conservation of momentum, energy dissipation through vehicle deformation, friction coefficients, human factors engineering, and biomechanics—to produce an objective chronology of the crash sequence. This isn’t guesswork; it’s applied physics validated against physical evidence, electronic data, and medical records.

The discipline applies to virtually any collision type: two vehicles at an intersection, one vehicle striking a pedestrian, a multi-vehicle chain reaction on a freeway, or a single vehicle leaving the roadway. The basic principles remain consistent even as the complexity scales.

Reconstruction answers critical questions:

• What were the vehicle speeds before and at impact?
• Where exactly did the collision occur, and at what angles?
• What were the vehicle trajectories before, during, and after impact?
• Did the driver have time and visibility to perceive and react?
• Did mechanical failure, road design, or environmental conditions contribute?

Physical evidence like tire marks, debris fields, and crush profiles merges with electronic data from event data recorders and telematics, plus medical records documenting injuries. MediVisuals + High Impact builds visuals that map each phase—pre-impact approach, impact dynamics, and post-impact rest—onto timelines and 3D environments that juries can follow.

Evidence and Data Sources in Modern Crash Reconstruction

Modern collision reconstruction combines traditional scene work with electronic and visual data streams that were unavailable just two decades ago. This convergence allows for sub-second temporal resolution and centimeter-level spatial accuracy when data collection happens promptly.

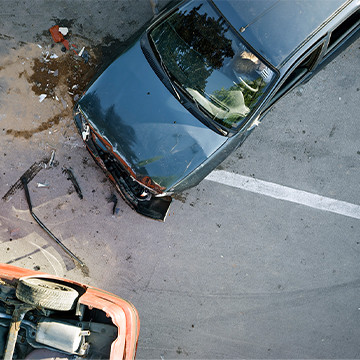

Core physical evidence includes skid marks (indicating locked-wheel braking), yaw marks (curved marks from lateral tire slip during steering maneuvers), gouges in pavement from suspension contact, fluid spills marking final positions, debris patterns fanning outward from the principal direction of force, and vehicle crush measurements quantifying deformation depth and direction.

High-resolution documentation tools have transformed scene investigation: total stations achieve millimeter precision, terrestrial LiDAR scanners generate million-point clouds with ±2mm accuracy, GNSS receivers provide ±1cm positioning, and drones capture orthophotography of expansive pileups. These measurements form the geometric backbone for later analysis and visualization.

MediVisuals + High Impact routinely ingests these diverse data types—scan files, photographs, video, and EDR downloads—to build consistent, scientifically defensible visual timelines and 3D scenes.

Event Data Recorders (EDRs) and Onboard Vehicle Data

Since NHTSA’s 2006–2014 rulemaking expanded requirements, most modern vehicles sold in North America contain some form of event data recorder. By 2014, approximately 95% of new passenger cars included standardized EDR functionality.

These devices log critical parameters during the 5 seconds preceding airbag deployment:

• Vehicle speed (typically to 0.1 mph resolution)
• Longitudinal and lateral acceleration (±50g range)
• Brake pedal application (binary or percentage)
• Throttle position
• Seat belt pre-tensioner status
• Steering angle (in newer vehicle systems)
• Stability control interventions

Reconstructionists use tools like the Bosch CDR (Crash Data Retrieval) system and OEM-specific interfaces to download and decode this data. EDR traces validate speed estimates derived from tire marks and help establish driver actions in the final moments before impact. For example, a 40 mph pre-brake speed dropping to 20 mph at impact aligns with 100 feet of skid at a friction coefficient of 0.8.

Attorneys frequently rely on EDR-based graphics—speed vs. time plots, brake application traces, and delta-V charts—to counter conflicting witness statements. MediVisuals + High Impact converts this data into intuitive visual aids that make technical evidence accessible during expert testimony.

Telematics, Fleet Systems, and Video Evidence

Commercial vehicles generate continuous data streams beyond EDRs. Fleet telematics systems from providers like Geotab and Samsara track GPS position at 1–5 second intervals, log engine control module parameters (RPM, fault codes, ABS events), record hours-of-service compliance per FMCSA regulations, and flag hard-braking thresholds exceeding 8 mph/second.

This data reveals speed changes, lane deviations, stop durations, and driver behavior patterns in the minutes or hours before a crash—evidence that can establish fatigue violations, distracted driving, or mechanical failure.

Video evidence has become equally critical. Dashcams in heavy trucks, transit buses, rideshare vehicles, and police cars enable frame-by-frame analysis of perception-reaction timing. Security cameras from intersections, parking lots, and storefronts provide third-party confirmation of traffic flow, signal timing, and impact angles—though lower frame rates (5–10 fps) may require interpolation.

MediVisuals + High Impact often synchronizes telematics data and video evidence into unified 3D timelines or side-by-side multimedia presentations, creating legal graphics for trial and mediation that show multiple data streams converging on a consistent narrative.

Step‑by‑Step Crash Reconstruction Process

Accident reconstruction follows a systematic workflow: initial case review, evidence preservation, scene investigation, vehicle inspection, analytical modeling, and courtroom presentation. Each phase builds on the previous, and gaps in early data collection can limit later analysis.

In contested cases involving severe injuries or fatalities, attorneys benefit from involving reconstructionists and visual experts within days—ideally hours—of the accident happened. Evidence degrades quickly: tire marks fade, fluid spills evaporate, vehicles get repaired, and telematics data overwrites on 30-day cycles.

MediVisuals + High Impact can join a case after the technical reconstruction is underway to convert findings into crash reconstruction animations and other trial-ready visuals, or collaborate from the outset with the engineering team to ensure documentation supports future animation needs.

Initial Case Review and Evidence Preservation

The reconstruction process begins with rapid review of available documentation: police reports, scene photographs, 911 call logs, witness statements, and any early insurer or OSHA records. This initial assessment identifies what evidence exists and what requires immediate preservation.

Preservation actions are time-sensitive:

• Issue litigation hold letters to fleet operators for telematics and EDR data
• Secure vehicles involved before repair or destruction
• Request surveillance video from nearby businesses before automatic overwriting
• Document weather conditions from official sources

Early drone flights, 3D scans, and panoramic photos are often captured within 24–72 hours in serious crashes, especially accidents involving fatalities. MediVisuals + High Impact uses this early documentation to plan animations and medical illustrations that will align precisely with the physical accident scene.

Scene Investigation and Documentation

Investigators document everything relevant to reconstructing the events leading to the collision: road surface type and condition, lane widths, grade and superelevation, signage placement, sight distances, lighting conditions, traffic control devices, and roadside hazards.

Measurement methods vary by case complexity. Simple scenes may use tape measures and photogrammetry from calibrated photos. Complex accidents demand total stations, GNSS receivers, drones for aerial orthomosaics, or terrestrial LiDAR capturing millions of data points.

Tire marks, yaw marks, gouges, and debris fields are mapped relative to fixed reference points—utility poles, lane markings, curb lines—to reconstruct pre-impact paths and pinpoint impact locations. These measurements ultimately form the geometric backbone of 2D diagrams and car crash animation environments created by MediVisuals + High Impact.

Vehicle Inspection and Mechanical Evaluation

Each vehicle undergoes detailed examination for vehicle damage patterns, crush depth, direction of deformation, contact points, and compatibility of damage between colliding vehicles. Deformation profiles reveal the principal direction of force and help estimate impact speeds.

Specific checks include:

• Brake systems condition and pad wear
• Steering component integrity
• Tire condition and inflation
• Lighting function
• Seat belts and restraint system deployment
• Airbag deployment patterns
• Aftermarket modifications affecting handling

EDR downloads, interior photography, and documentation of intrusion into occupant spaces feed into delta-V calculations and injury mechanism analysis. Vehicle deformation patterns combined with occupant positions inform biomechanical assessments connecting collision forces to specific injuries.

MediVisuals + High Impact builds detailed 3D vehicle models showing crush patterns, intrusion zones, and occupant locations—presented in side, top, and isometric views that make complex damage intuitive for jurors as part of its comprehensive car crash animation services.

Analytical Modeling and Simulation

Reconstructionists apply energy and momentum equations, time-distance analysis, and braking/drag calculations to derive speed and trajectory estimates. The classic skid-to-stop formula—speed equals the square root of 30 times distance times friction coefficient—provides initial estimates that are refined through iterative analysis.

Software platforms like PC-Crash, Virtual Crash, and HVE simulate vehicle dynamics, rollovers, and multi-vehicle interactions using multi-body dynamics. Analysts adjust models iteratively until outputs match physical evidence, EDR data, and video evidence, documenting assumptions and uncertainty ranges throughout.

Results—speeds, angles, timing, crash sequences—are distilled into simplified charts, timelines, and 3D sequences by MediVisuals + High Impact so experts can explain complex calculations without overloading jurors with equations.

From Technical Findings to Courtroom Visuals

The final step converts technical findings into a narrative supported by visual aids: static diagrams, interactive 3D models, and forensic animations. Every visual must accurately reflect the reconstruction expert’s conclusions while remaining comprehensible to non-technical audiences.

MediVisuals + High Impact collaborates closely with reconstructionists and attorneys to ensure every frame matches underlying data and report conclusions. Common exhibit types include aerial crash diagrams with vehicle trajectories overlaid, synchronized multi-camera timelines, occupant kinematics animations, and side-by-side sequences comparing plaintiff and defense theories.

All visuals must meet admissibility standards under Daubert or Frye, with clear documentation of data sources and methodologies to withstand cross-examination. Visuals serve as clarifiers of complex evidence, not embellishments—scientific accuracy is the differentiator that makes exhibits credible.

Specialized Reconstruction Scenarios

Not all vehicular accidents behave like a straightforward two-car intersection collision. Different vehicle types, environmental conditions, and configurations change the physics, evidence patterns, and litigation strategies.

Motorcycle and Bicycle Collisions

Motorcycles and bicycles exhibit distinct vehicle dynamics: higher instability, pronounced pre-impact yaw and slide, and greater rider exposure. Reconstruction works backward from final rest positions, scrape marks, and separated components—helmets, saddlebags, shoes—to determine pre-impact paths and lean angles.

Common questions include conspicuity (was the rider visible given lighting and clothing?), speed estimation from slide distance, helmet use and impact orientation, and external factors like road surface debris. MediVisuals + High Impact illustrates rider kinematics, helmet impacts, and skeletal injuries correlated with forces from the reconstruction.

Commercial Vehicle and Tractor‑Trailer Accidents

Heavy trucks present added complexity: 300-foot stopping distances from 60 mph, air brake lag of 0.5 seconds, jackknife potential when friction drops below 0.4, trailer swing, and cargo shift. Key data sources include ECM data, telematics from fleet systems, driver logs, onboard cameras, and maintenance histories documenting brake or tire conditions.

Reconstruction often examines regulatory compliance with FMCSA rules, hours-of-service violations, loading practices, and prior out-of-service inspections. Consider a nighttime freeway jackknife: the tractor-trailer articulation exceeds 90 degrees, sweeping across lanes and triggering a multi-vehicle pileup. MediVisuals + High Impact visualizes this sequence—off-tracking, underride scenarios, cargo ejection—in animations that are persuasive yet scientifically accurate, similar to the collision animation used in a confidential truck intersection settlement.

Low‑Speed and Parking‑Lot Impacts

Low-speed crashes below 10 mph can still result in injury claims, leading to disputes over delta-V, occupant motion, and plausibility of reported injuries. Collision analysis methods include bumper stiffness testing, damage compatibility assessment, comparison with staged testing data from sources like IIHS, and evaluation against biomechanical thresholds for whiplash (typically requiring occupant loads exceeding 5g).

Minimal or no visible property damage makes precise measurements and high-quality photography crucial. MediVisuals + High Impact creates clean diagrams and animations for these cases, focusing on vehicle movement, seat belt function, and occupant posture rather than graphic imagery.

Pedestrian and Cyclist Strikes

Reconstruction goals in pedestrian cases include determining impact speed, perception-reaction time available to the driver, crosswalk use, visibility conditions, and potential avoidance options. Throw distances, body rest positions, contact points on the vehicle, and injury patterns back-calculate impact parameters using established formulas.

Issues like nighttime lighting, headlamp performance (candela drops 50% at 200 feet), clothing contrast, and visual obstructions affect visibility analyses. MediVisuals + High Impact sensitively visualizes human trajectories and injury mechanisms using stylized or semi-abstract figures where appropriate for presentation to jurors.

Manufacturer and Maintenance Issues in Accident Reconstruction

Manufacturer and maintenance issues are often pivotal in vehicle accident reconstruction, as they can reveal underlying causes that may not be immediately apparent at the accident scene. Accident reconstruction experts meticulously review the maintenance history of the vehicles involved, searching for evidence of neglected repairs, overdue service, or faulty components that could have contributed to the crash. This includes a thorough analysis of brake systems, tire condition, steering mechanisms, and other critical vehicle systems that, if compromised, can significantly impact vehicle performance and safety.

Event data recorders (EDRs) play a crucial role in this process by providing objective data on the vehicle’s operation in the moments leading up to the accident. EDRs can reveal whether the brake systems were functioning properly, if there were any warning lights or fault codes, and how the vehicle responded to driver inputs. For commercial vehicles, accident reconstruction experts also examine regulatory compliance and maintenance logs to determine if the fleet operator adhered to required safety standards.

By analyzing these contributing factors, accident reconstruction professionals can identify whether a mechanical failure, lack of maintenance, or even a manufacturer defect played a role in the vehicle accident. This comprehensive approach is essential for determining liability, especially in cases where multiple parties—such as vehicle manufacturers, maintenance providers, or fleet operators—may share responsibility. Ultimately, a detailed investigation into manufacturer and maintenance issues helps ensure that all potential causes are considered, supporting accurate and defensible conclusions in accident reconstruction cases.

Multi-Vehicle Accident Reconstruction

Multi-vehicle accident reconstruction presents unique challenges that require advanced expertise and the integration of cutting-edge technology. When several vehicles are involved in a collision, the complexity of the accident scene increases exponentially, making it essential to accurately reconstruct the collision sequence and vehicle trajectories to determine the root cause of the accident.

Accident reconstruction experts begin by collecting and analyzing physical evidence from the accident scene, such as skid marks, tire marks, debris patterns, and vehicle deformation. Event data recorders (EDRs) from each vehicle involved provide critical insights into vehicle speed, driver actions, and system responses in the seconds before impact. This data is complemented by witness statements, medical records, and other documentation that help piece together the events leading up to the crash.

To manage the complexity of multi-vehicle collisions, experts utilize computer-aided design (CAD) and animation software to create detailed, scientifically accurate models of the accident scene. These tools allow for precise analysis of vehicle dynamics, collision forces, and the sequence of impacts, enabling experts to visualize how each vehicle moved and interacted during the crash. By simulating the collision sequence and analyzing data from all available sources, reconstructionists can identify contributing factors, determine liability, and recommend safety measures to help prevent future accidents.

In cases involving severe injuries or fatalities, multi-vehicle accident reconstruction is critical for understanding the full scope of the incident and supporting legal proceedings. The ability to analyze data from multiple vehicles, synthesize complex evidence, and present findings through compelling visual aids ensures that all parties have a clear understanding of how the accident happened and what factors contributed to its outcome.

Vehicular Reconstruction in Litigation and Claims

Reconstruction supports civil litigation for personal injury and wrongful death, criminal prosecutions, product liability claims, and insurance disputes. Attorneys use reconstruction findings early in case evaluation to determine liability, assess settlement value, and decide whether to engage additional experts in human factors, road design, or biomechanics.

Visual exhibits produced from reconstruction findings anchor narratives of liability and causation in mediations, settlement conferences, and trials—making the difference between cases involving disputed facts and clear verdicts.

Determining Fault, Causation, and Apportionment

Reconstruction helps allocate fault among drivers, vehicle manufacturers, maintenance providers, and public entities responsible for roadway design. Timing diagrams and visibility studies show whether a driver had sufficient time and distance to avoid the collision given factors contributing to the crash.

In comparative negligence jurisdictions, quantitative estimates of driver behavior—speeding 15 mph over the limit, for example—directly influence apportionment decisions. MediVisuals + High Impact translates these assessments into color-coded timelines and “what the driver could see” views that make technical analysis accessible.

Expert Testimony and Admissibility of Visuals

Reconstruction experts testify to methodology, calculations, and conclusions. Courts applying Daubert standards require reliable methods, peer-reviewed principles (such as SAE J885 for skid testing), known error rates, and general acceptance. The Accreditation Commission for Traffic Accident Reconstruction (ACTAR) certification demonstrates adherence to industry standards.

Animations and 3D graphics are typically admitted as demonstrative evidence when they accurately reflect expert testimony. Courts have excluded animations that dramatize or mislead, while admitting those with documented data sources and expert sign-off. MediVisuals + High Impact maintains version control and expert approval on every scene to support admissibility.

Integrating Medical, Biomechanical, and Product Evidence

In cases involving severe injuries, reconstruction findings integrate with medical and biomechanical analysis through medical records, imaging (CT, MRI), operative reports, and autopsy findings. This coordination shows how collision forces caused specific injuries—rib fractures from chest accelerations exceeding 60g, for instance.

MediVisuals + High Impact’s medical illustration team creates cross-sectional anatomical views, skeletal and soft-tissue graphics, and animated sequences showing fractures, ligament tears, or brain injuries synchronized with crash forces for personal injury trial presentations. Product liability cases may depict seat belt routing, airbag deployment timing, or roof crush progression aligned with the reconstruction timeline, supported by specialized product liability visuals.

Technology, Innovation, and Future Trends in Vehicular Accident Reconstruction

Reconstruction has evolved from manual sketches and slide-rule calculations to data-rich, digitally modeled collision analysis. Attorneys and insurers increasingly expect 3D models, simulations, and animations that can be updated as new evidence surfaces.

3D Laser Scanning, Drones, and Digital Twins

Terrestrial LiDAR and mobile scanning capture millions of points from roads, intersections, and vehicles, producing detailed 3D point clouds. Drones capture nadir and oblique imagery for orthomosaic mapping of wide scenes like freeway pileups.

The result is a “digital twin” of the crash site—a metrically precise, navigable 3D model where vehicles, pedestrians, and time-based events can be placed and animated. MediVisuals + High Impact imports scan data from engineering teams and builds visually polished models for interactive fly-throughs or still frames, leveraging its multidisciplinary visualization and animation team.

Advanced Simulation, AI, and Data Analytics

Simulation software models complex behaviors—rollovers, occupant motion, vehicle-barrier interactions—using finite element analysis and multi-body dynamics. Artificial intelligence applications are emerging: automating scene measurements from photographs, enhancing video frames through super-resolution, and clustering similar crash patterns across datasets.

While cutting edge technology speeds preliminary analysis, expert oversight remains essential for courtroom presentations. MediVisuals + High Impact ensures any AI-assisted outputs are fully reviewable and traceable to original evidence.

Rising Data Complexity: ADAS, AVs, and Connected Vehicles

Advanced driver-assistance systems and early autonomous vehicles generate vast logs of sensor data: radar returns, lidar point clouds, camera feeds, path planning decisions, and control commands. Reconstructionists must now answer whether lane-keeping assistance was active, whether automatic emergency braking engaged, and how drivers interacted with automation.

Connected vehicle data—vehicle-to-vehicle and vehicle-to-infrastructure messaging—will increasingly factor into preventing future accidents and reconstructing urban crashes. MediVisuals + High Impact develops visualization workflows showing human-automation interactions clearly for future litigation.

Why Work With MediVisuals + High Impact on Vehicular Reconstruction Cases?

While reconstruction determines what happened, visual exhibits ensure decision-makers can actually see and understand it. MediVisuals + High Impact supports litigation across personal injury, wrongful death, commercial trucking, product liability, and roadway design matters nationwide.

Key differentiators include collaboration with top reconstruction and biomechanical expert witnesses, strict adherence to scientific accuracy, meticulous documentation for admissibility, and visuals designed specifically for courtroom and mediation environments.

Core visual services for vehicular cases include:

• Forensic animations showing collision sequence and vehicle trajectories
• Impact and trajectory diagrams with synchronized timelines
• Medical and biomechanical illustrations linking forces to injuries
• Interactive 3D crash scenes navigable in real-time
• Demonstrative timelines integrating multiple evidence streams

Early involvement of visual experts shapes discovery requests, strengthens negotiation leverage, and ensures the reconstruction process feeds directly into compelling trial exhibits, supported by comprehensive trial presentation and litigation services.
